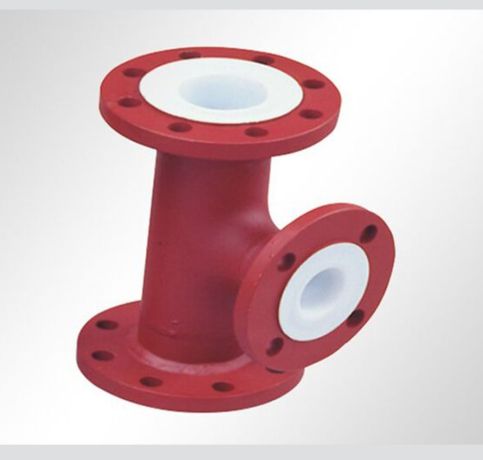

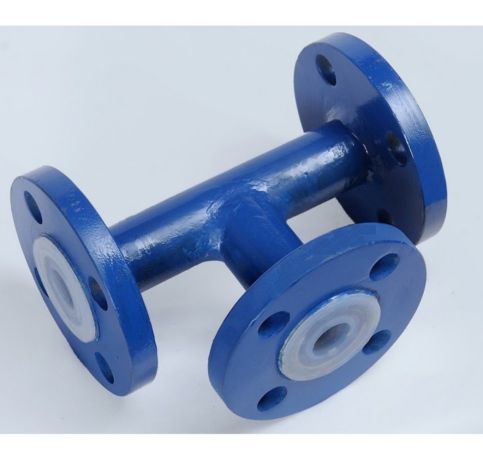

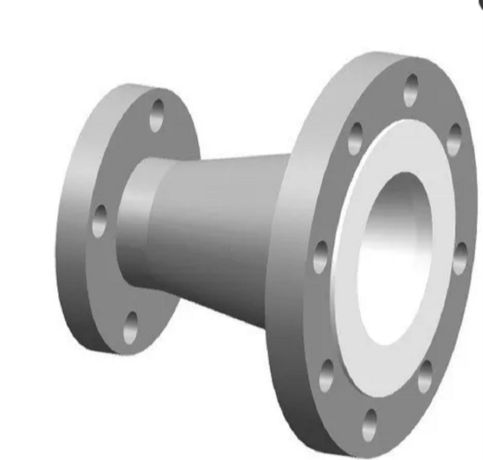

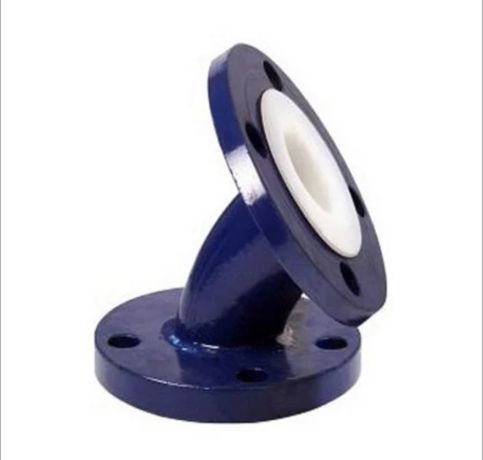

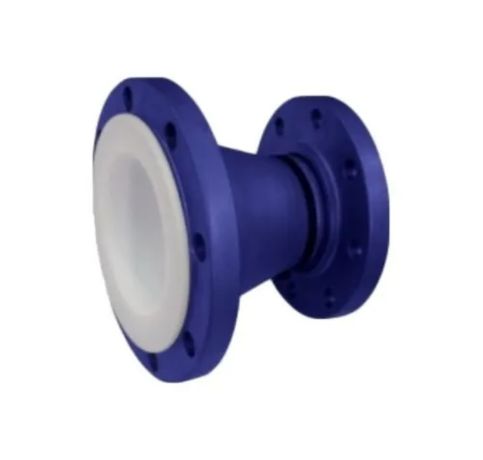

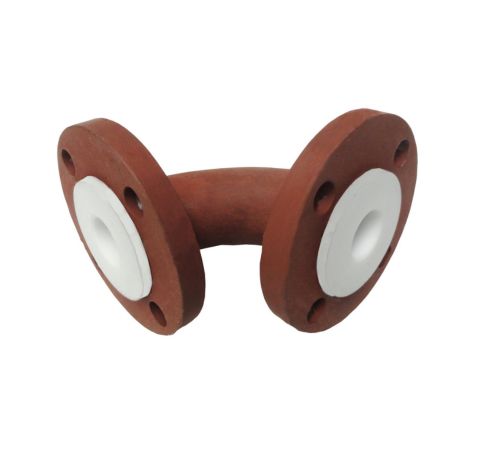

Dubai-based AL Jazeera PTFE is a world-class producer of high-quality Teflon Lined Fittings to meet corrosive and high-purity process applications in different industries. Precision engineered and rugged, our fittings are used extensively in the chemical, pharmaceutical, food processing, and petrochemical industries. We provide a full line of Teflon-lined fittings, including elbows, tees, reducers, crosses, dip pipes, nozzles, spacers, and end connections, all manufactured to international standards. AL Jazeera PTFE provides optimum corrosion resistance, leak protection, and reliability with customized solutions to fulfill stringent process demands.
Teflon Lined Fittings are metallic (usually carbon steel or stainless steel) piping fittings with a lining of PTFE (Polytetrafluoroethylene), more generally referred to as Teflon. These fittings are used for carrying very aggressive or reactive chemicals and provide outstanding chemical resistance, non-stick behavior, and thermal stability. The Teflon lining is used to isolate the metal from aggressive fluids to ensure longer lifespan, lower maintenance, and clean flow without contamination, making them suitable for employment in hostile industrial environments.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : Teflon
Al Jazeera PTFE Lining is a leading supplier of Teflon Lined Pipe Fittings in Dubai, UAE, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
NB | ID | RF | OD | PCD | No.Of Holes x Dia Of Holes | Lining Thickness Standard | Lining Thickness Full Vacuum | Length Max. |
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Withstands aggressive acids, alkalis, and solvents without degrading.
Performs reliably in elevated temperature environments up to 260°C.
Ensures tight, secure connections for safe and efficient operation.
Offers durability and reduces maintenance costs in harsh industrial settings.
They offer high corrosion resistance, avoid chemical reaction with the base metal, and possess a long life in corrosive environments.
They are extensively applied in the chemical, pharmaceutical, food processing, water treatment, and petrochemical industries.
Teflon lined fittings usually come in sizes from 1/2″ to 12″ in standard sizes, and special sizes can be made on order.
Yes, PTFE usually has a temperature resistance up to 260°C (500°F), subject to pressure and application.
Though they provide good chemical resistance, PTFE linings are not recommended for very abrasive slurries unless reinforced.
