AL Jazeera PTFE, a Dubai, UAE-based company, is a renowned and reliable manufacturer of PTFE Lined Elbows that provides top-class solutions for fluid handling systems in hostile chemical conditions. Our elbows are designed to offer smooth pipeline directional changes while ensuring complete chemical resistance and mechanical strength. We produce an extensive variety of PTFE lined 45° and 90° elbows, with long radius, short radius, and custom bend, having different end connections like flanged or butt-welded. Our products are of international quality standards and find application in critical sectors like chemicals, pharmaceuticals, water treatment, and food processing.
A PTFE Lined Elbow is a pipe fitting for changing the direction of fluid flow, internally lined with PTFE (Polytetrafluoroethylene) to offer resistance to corrosive and high-purity media. Made of carbon or stainless steel, the metal body of the elbow provides structural strength, while the PTFE lining guards against chemical attack. The elbows are necessary in systems conveying aggressive fluids like acids, solvents, or alkalis, providing durability, safety, and low maintenance in aggressive industrial environments.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Al Jazeera PTFE Lining is a leading supplier of PTFE Lined Elbow in Dubai, UAE, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Ensures secure and safe flow direction
Performs reliably in elevated heat conditions.
Minimizes turbulence and pressure drop
Handles aggressive chemicals without degradation.
They provide high corrosion resistance, smooth flow passage, and long service life in aggressive chemical environments.
Generally utilized in chemical process, pharmaceutical, petrochemical, food and beverage, and water treatment applications.

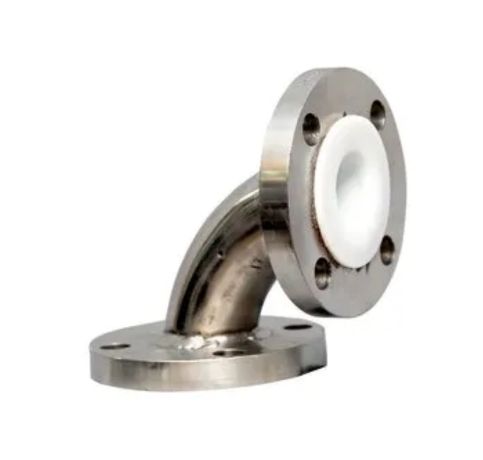

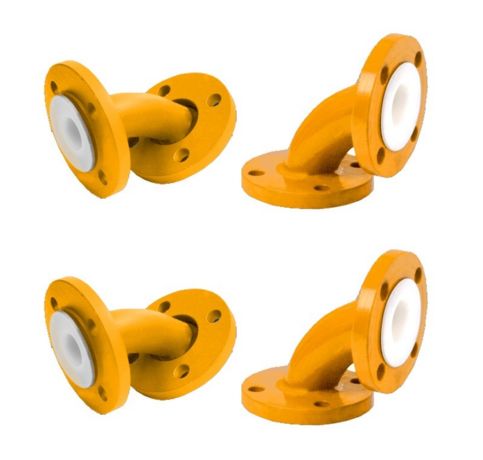

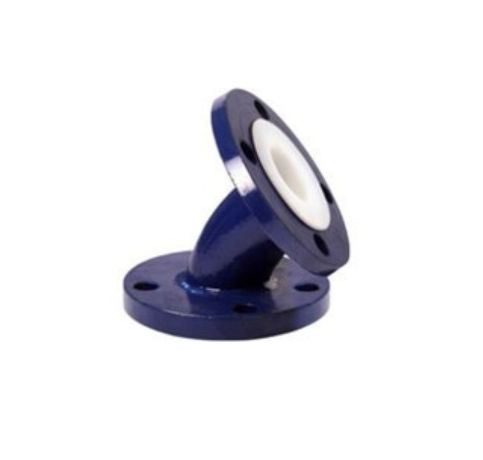

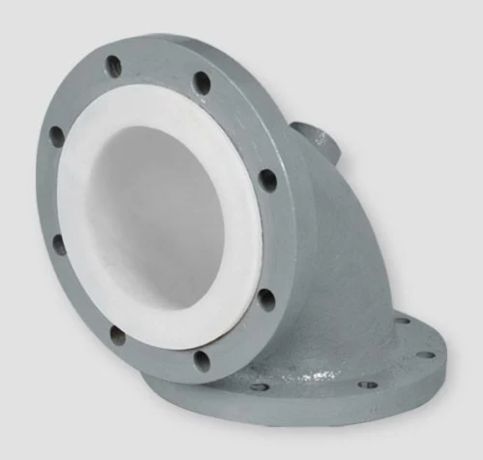

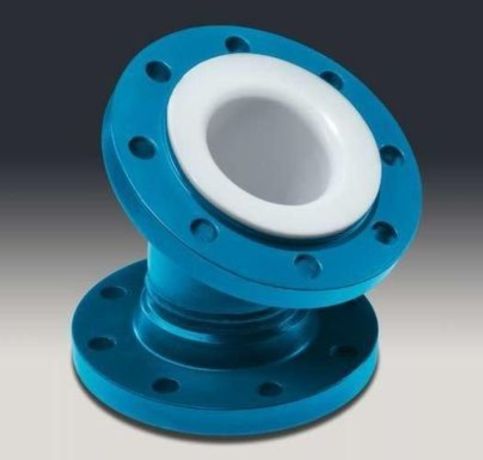

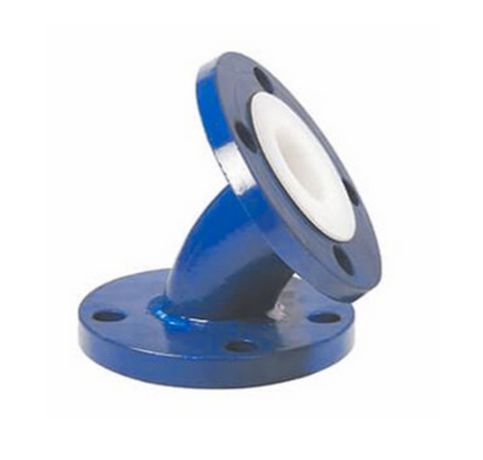

45° and 90° elbows, short radius and long radius, flanged or welded ends.
PTFE lined elbows can generally operate between -50°C and +200°C.
Yes, AL Jazeera PTFE provides custom sizes, angles, and end connections according to client specifications and application requirements.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Dubai, UAE.
