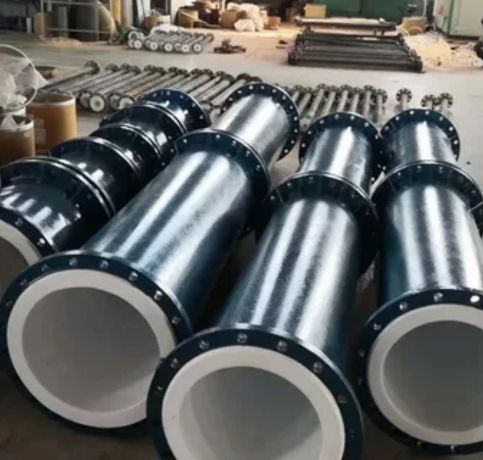

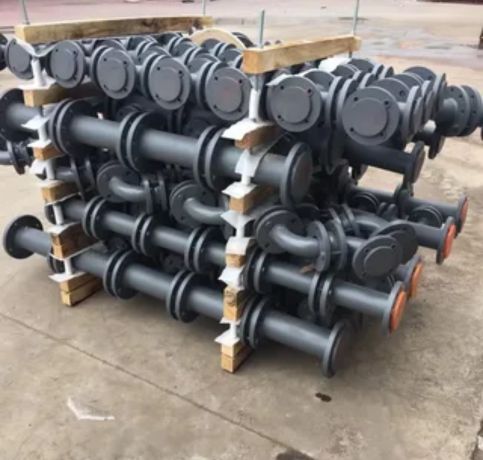

AL Jazeera PTFE, Dubai, UAE, is a renowned and reliable manufacturer of MS PTFE Lined Pipes, providing high-performance piping solutions for corrosive and high-purity fluid-handling industries. Our MS (Mild Steel) PTFE lined pipes are designed by adhering a strong PTFE liner inside a mild steel shell that is itself robust, providing both chemical resistance and structural strength. We provide various types such as straight pipes, elbows, tees, reducers, and custom lengths, according to client requirements. These pipes are extensively used in chemical processing, pharmaceuticals, water treatment, and petrochemical industries for long-lasting and safe fluid transfer.

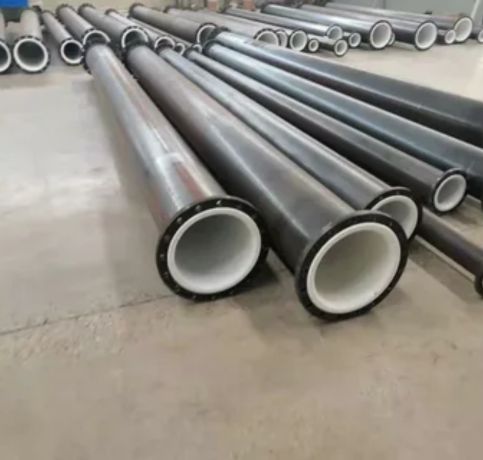

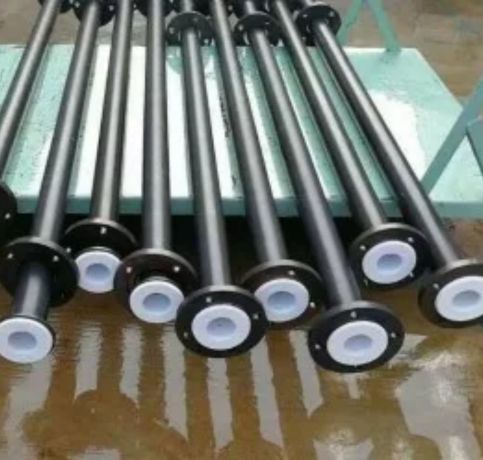

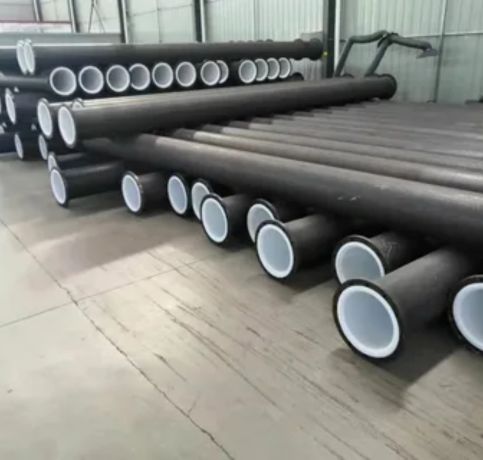

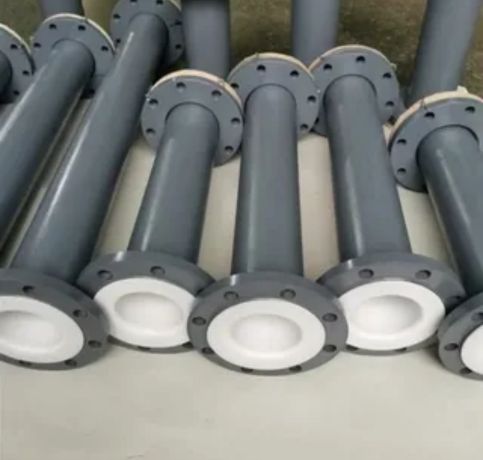

An MS PTFE Lined Pipe is made up of an outer mild steel (MS) body lined on the inside with PTFE (Polytetrafluoroethylene), intended to transport corrosive or high-purity fluids in a secure manner. The steel outer body ensures mechanical strength, while the PTFE lining ensures superior chemical resistance, non-adhesiveness, and resistance to heat. These pipes are perfect for application in conditions where metal corrosion is an issue, providing a longer lifespan and stable performance in chemical plants, refineries, pharmaceutical facilities, and wastewater treatment plants.
Size : 25 NB to 450 NB
Pipe Material : 106 grade B Sch 40 from 25 NB to 150 NB
Flanges Used : ASTM A 105/IS 2062
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
PIPE : 1. SEAMLESS CS ASTM A106 GR.B, SCH.-40, 2. ASTM A312 TP 304, SCH.-40
FLANGE : 1. IS 2062 / ASTM A105, 2. ASTM A351 GR. CF8
Lining Material Options
PFA – ASTM D 3307
FEP – ASTM D 2116
ETFE – ASTM D 3159
PVDF – ASTM D 3322
PP – ASTM D 4101
HDPE
MS PTFE Lining is a leading supplier of MS PTFE Lined Pipes in Dubai, UAE, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Superior protection against corrosive chemicals.
Reduces friction and enhances flow efficiency.
Withstands high temperatures (up to 260°C) and high pressures.
More affordable than expensive alloys, offering similar performance.
They offer the strength of mild steel coupled with the corrosion resistance of PTFE, perfect for aggressive chemicals.
Standard pipe sizes are available between 25 mm (1“) and 300 mm (12“), and custom sizes can be ordered on request.
MS PTFE lined pipes can typically be used between -30°C and +200°C.
Chemical processing, pharmaceutical, food and beverage, petrochemical, and wastewater treatment plants.
Can MS PTFE lined pipes support high pressure?
